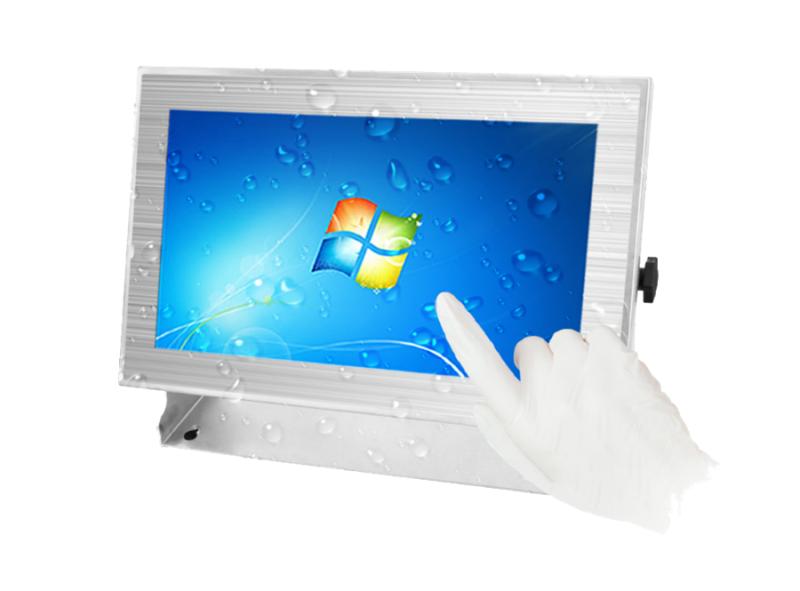

TScale Electronics Mfg (kunshan)Co.,Ltd. (Taiwan) - Press Release: T-Scale's S15-PC Industrial Intelligent Weighing Terminal, PC Based ultra-compact rugged terminal suitable for using in electronics, food, chemical, pharma and all industrial applications.
- Industrial Large Touch Screen:
- Large 15.6” TFT LCD display with wide viewing angle.
- Touch operating system provides ease of use and fast operation.
- Stainless Steel 304 housing structure, metal on/ off key and interface plug are all waterproof.
- Adjustable mounting bracket suitable for wall-mounted or desktop.
- Hardware & performance:
- 2.0GHz speed processer support Windows 7/ 10, and support third-party software development applications.

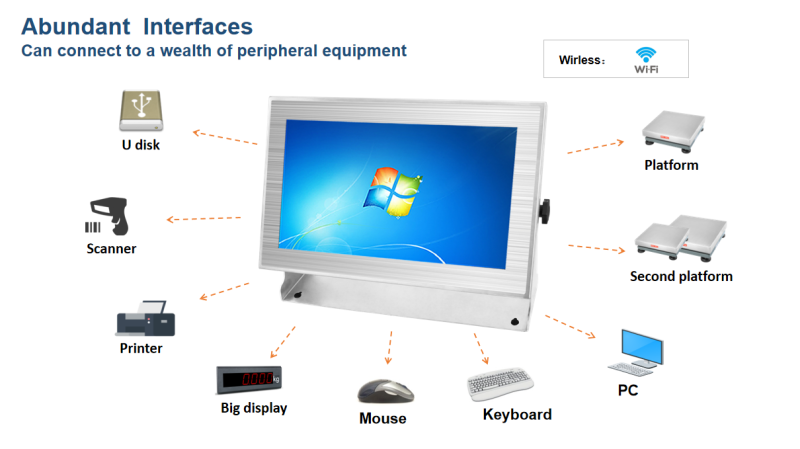

- Abundant interfaces, can be connected to the Internet, USB, PC, WIFI, printer, second platform, etc., to meet all industrial application requirements.
- PC Based System Integration:
- T-Scale provides professional integration documents and libraries, for updating system quickly.
- Display: 15.6 inch operating display resolution:1366 x 768 px
- Capacity/ Resolution: 30000d
- Internal Resolution: 1/ 100,000
- Keyboard: 5 wire Resistive Touch Screen with 1 mechanical key
- Interfaces: 2 x USB2.0 (type A); 2 x RS-232; 1 x RJ45 for Ethernet; Wi-Fi: 2.4GHz support IEEE 802.11 a/b/g/n; Second Platform
- Operation Temperature: 0~ +40°C
- Storage Temperature: -20~ +60°C
- Operating Humidity: 5%~ 85%R.H.
- Power: Main power input AC 100-240V
- Communication: Standard 10/ 100 base T Ethernet
- Product Weight: N.W 6.7kg G.W 8.9kg
For more information about S15-PC, please visit our website www.t-scale.com
