ZIEHL-ABEGG (Germany) - Quiet, bionic fans from Ziehl-Abegg move 99,000 cubic metres of air per hour.
The Carmen Würth Forum is an outstanding event location in southern Germany. The architect David Chipperfield has designed a building which is used for nationwide corporate and cultural events. In order to avoid affecting visitor’s enjoyment of the acoustics, extremely quiet bionic fans from Ziehl-Abegg operate behind the scenes.
One of the gems in the Carmen Würth Forum is the Reinhold Würth Hall. It is suitable for events that are to be held within a special setting. The high-quality event and interpreting technology means that a wide range of event formats can be staged without any problems. The sophisticated design, without the use of amplifiers, also allows for chamber music concerts to be held. "The concert hall offers superb acoustic conditions for unique concerts, making it the ideal home for the Würth Philharmonic," says Prof. Dr. H. C. mult. Reinhold Würth, Chairman of the Foundation Supervisory Board of the Würth Group.
Suitability for top international concerts:
French walnut wood provides the acoustics in the Reinhold Würth Hall. Panels with ultra-fine perforations absorb unwanted vibrations, while those with smooth surfaces relay the sound. Special acoustic chairs create a similar effect if there are any empty seats in the hall.
Concerts can be held without the need for amplification; the hall is suitable for both soloists as well as orchestras. Even if the room is fully occupied, the reverberation times stay within the ideal range.
The requirements demanded of the air conditioning system are clear: excellent climate control and fresh air supply, whilst simultaneously keeping noise levels to the minimum. That’s why fans from Ziehl-Abegg are at work in the basement, with a design based on knowledge gained from Nature. Peter Fenkl, Chairman of the Board of Directors of Ziehl-Abegg, underlines this: “We are pleased about being able to contribute to the unique acoustics in the Reinhold Würth Hall with our efficient and ultra-quiet bionic fans." The design of the fans contains features that developers at Ziehl-Abegg learned from the owl and the humpback whale. “We employ positive properties that Nature has fine-tuned and optimised over thousands of years," explains Fenkl. This type of fan, with impressive variable room acoustics and versatility, is also used for the ventilation in the large hall.
The large event hall offers seating for 2500 and the Chamber Concert Hall, 600. The Würth Group has invested 60 million euros in creating the optimum conditions for the ultimate in cultural enjoyment. The hall was inaugurated in the summer of 2017.
Behind the scenes, two centrifugal fans (ZAbluefin) each with a diameter of 710 millimeters, operate in the basement of the chamber music hall. They move 29,000 cubic metres of air per hour. This configuration enabled the acoustic pressure in the air inlet duct to be halved to 58.1 dB (A). The ventilation system for the large event hall is located on the roof which also houses two centrifugal fans (ZAbluefin, 1,000 mm) that circulate 70,000 cubic metres of air per hour.
CARMEN WÜRTH FORUM:
Designed by the British architect David Chipperfield, the Carmen Würth Forum was opened on 18th July 2017. Within an inspirational environment, it offers a wide range of events for congresses, conferences, trade fairs, product presentations, corporate gatherings and anniversary events.
By being part of the Würth group, the Carmen Würth Forum combines art and culture with economic know-how in a unique way.
Construction extended over a period of 18 months. During this period, a multifunctional event hall, the so-called large hall and a chamber music hall, the Reinhold Würth Hall were created on an area covering of 170,000 m2, directly opposite the corporate headquarters of Adolf Würth GmbH & Co. KG.
The large hall is designed to hold up to 2,500 people and is suitable for anniversary celebrations, congresses, trade fairs and product presentations.
The event space in the large hall is complemented by a rotating, all-round glazed gallery. There is also a terrace on this level, offering sweeping views over the Hohenlohe landscape.
The Reinhold Würth Saal offers the ultimate audio experience for an audience of around 600. No electronic support is needed for concerts. This is achieved through the arrangement and choice of ceiling and wall panel surfaces which absorb unwanted vibrations through ultra-fine perforations, ensuring optimum sound quality for the whole audience. Equipped with state-of-the-art event technology, the special ambience of the Reinhold Würth Hall enables it to also be used for high-quality corporate events.

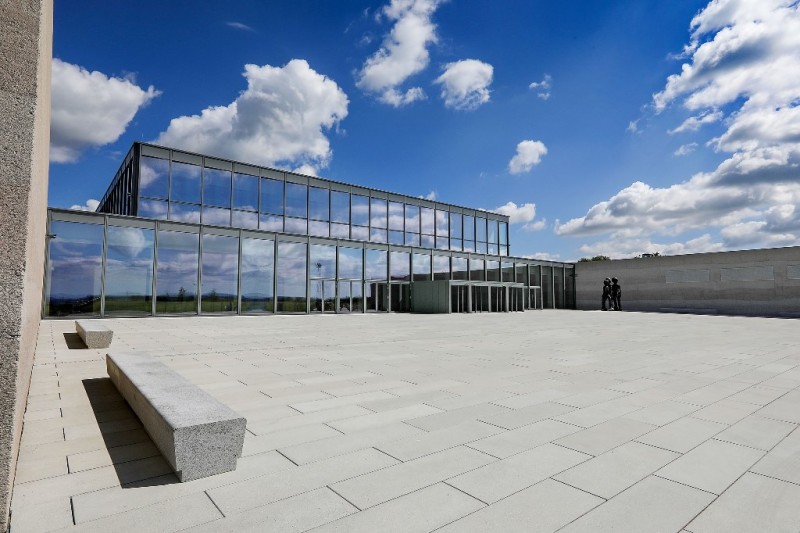

Picture 1 Caption:
The Carmen Würth Forum in Künzelsau offers a venue for outstanding, cultural concert experiences.

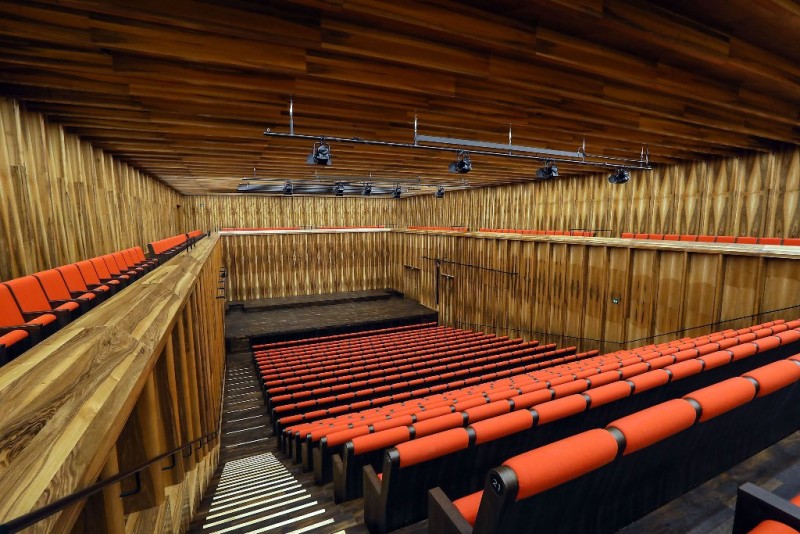

Picture 2 Caption:
The exquisite wood panelling of the Reinhold Würth Hall is fascinating; its design and choice of surface provides for the ultimate sound experience.
Picture 3 Caption:
Prof. Dr. h. c. mult. Reinhold Würth (left), the Chairman of the Foundation Supervisory Board of the Würth Group learns about the bionic concept of the quiet fans from Peter Fenkl, Chairman of the Board of Directors of Ziehl-Abegg SE.
