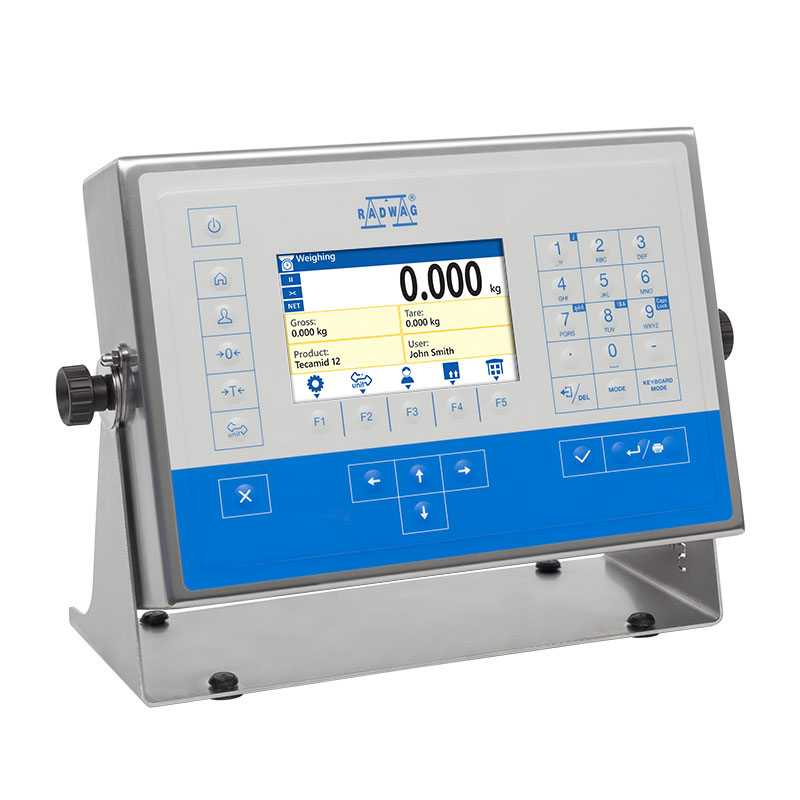

New ATEX Terminal from RADWAG - Model HX5.EX

New ATEX Terminal from RADWAG - Model HX5.EX
RADWAG Balances and Scales (Poland) – HX5.EX is an indicator intended for industry. It represents the newest RADWAG-manufactured equipment designed to be used in areas endangered with explosive atmosphere. HX5.EX is compliant with ATEX directive.

The indicator is a device intended to be used in environment filled with explosive gases and dust, it can be operated in zones: 1/21 and 2/22.

Indicator Models - There are 4 different models:
  • PUE HX5.EX-1: 2 × RS232, RS485 - standard design
  • PUE HX5.EX-2: standard design + 4I/4º
  • PUE HX5.EX-3: standard design + 4I
  • PUE HX5.EX-4: standard design + 4O

  • The housing is made of AISI 304 stainless steel of high protection class: IP66 / IP68 (up to 1.5 m immersion).
  • The indicator features 5" colour LCD display covered with polycarbonate that protects it against shocks, and membrane keyboard. Ease of operation, clear menu and intuitive information arrangement on the display guarantee comfort of operation.
  • Hermetic intrinsically safe interfaces connectors are located on the back side of the housing. Stable mount bracket enables mounting the indicator either on any flat horizontal surface or on the wall where its inclination angle can be easily adjusted.

For more information about this article from RADWAG Balances and Scales click here.
