Baggage scales with W&M approved SysTec weighing technology

Baggage scales with W&M approved SysTec weighing technology

SysTec Systemtechnik und Industrieautomation GmbH (Germany) - Baggage scales with W&M approved SysTec weighing technology.

Kilomatic equips self-check-in stations with SysTec weighing indicators:

At Nuremberg Airport, selected airlines offer bag drop machines for passengers to check in their bags themselves. Thanks to the self-service bag drop system, passengers who have completed online check-in in advance can simply scan their QR code at Nuremberg Airport, weigh their baggage, print out a baggage tag and check in their luggage themselves. SysTec partner Kilomatic has equipped the baggage scales with SysTec's W&M approved weighing electronics and software. The bag drop machines are manufactured by Embross. Kilomatic is responsible for installing and servicing the SysTec weighing technology.


  • SysTec IT1 weighing indicator (blackbox version), installed in Embross bag drop systems
  • SysTec software PC ScaleView: Program for W&M approved weight display on a PC or mobile devices with Windows operating system
  • Installation and service of the baggage scales by Kilomatic

The process:

The self bag drop off-system in departure hall 2 is initially equipped with six stations. It enables passengers to check in their baggage themselves. It is positioned in such way that it is clearly visible on the passenger's route from the terminal entrance towards the security checkpoint.

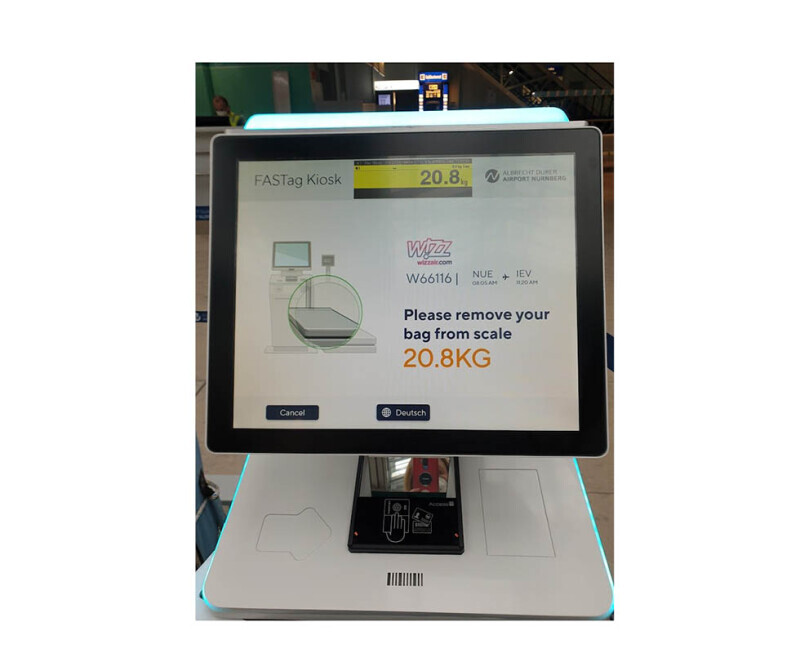

A screen guides travelers through the individual steps in several languages. For example, how to create the self-printable baggage tag by scanning the barcode of the existing boarding pass or smartphone, how to weigh the bag and attach the baggage tags themselves.

The approved weight values can be viewed by the passenger on the customer display - thanks to SysTec's PC ScaleView software. The IT1 weighing indicator integrated into the bag drop system records the weight data and transfers it to the Embross software.

As soon as all process steps have been completed, passengers can go to the nearby baggage belt. There, they place their bags on the belt, follow the instructions on the display and scan the code from their boarding pass or smartphone again. The code, baggage tag and weight are checked and the baggage is transported via the conveyor system for sorting and loading.

IT1 blackbox at a glance:

  • Compact stainless steel housing with protection class IP65 / IP67
  • Suitable for harsh industrial environments
  • W&M approved as a non-automatic scale in combination with the Windows software PC ScaleView
  • For connecting analog strain gauge scales with an input impedance of 43 Ohm-3.3 kOhm (suitable e.g. for 8 x 350 Ohm load cells), W&M approved resolution 10,000 d.
  • One slot for serial or Ethernet interface module and one slot for digital inputs and outputs or analog output
  • Internal W&M approved weight memory for recording the last 1,000,000 weighing results

For more information about this article from SysTec Systemtechnik und Industrieautomation GmbH click here.
