Autonics introduces their newest line of Photoelectric Sensors, the BJR Series

Autonics introduces their newest line of Photoelectric Sensors, the BJR Series

Autonics Corporation (South Korea) - The new BJR Series from Autonics Corporation.

Oil-Proof/Oil-Resistant Photoelectric Sensors:

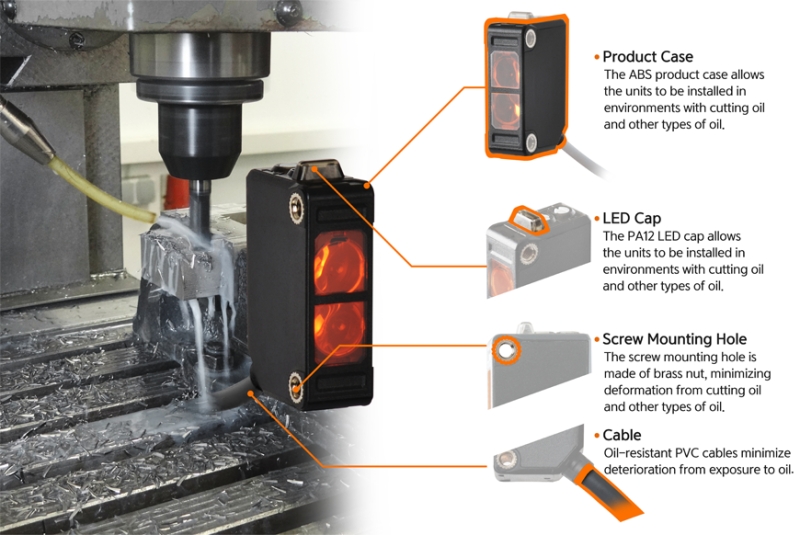

The BJR series oil-proof/oil-resistant photoelectric sensors are optimized for use in various environments with cutting oil and lubricants such as automotive and machine tool industries. The sensors are capable of long distance detection up to 15 m (through-beam type). Various features including MSR (Mirror Surface Rejection) function and mutual interference prevention functions allow stable and error-free operation. The screw mounting hole is made of metallic nuts, allowing easy installation using M3 bolts and offering easy maintenance even when exposed to various oils.

Main features:

  • For use in oil environments such as cutting oil or lubricants (optimized for automotive and machine tool industries)
    BJR (oil-proof type): special coating prevents oil (oil drop/powder) from penetrating into the product
    BJR-F (oil-resistant type): operates normally even when oil (oil drop/powder) penetrates into the product
  • Long sensing distance:

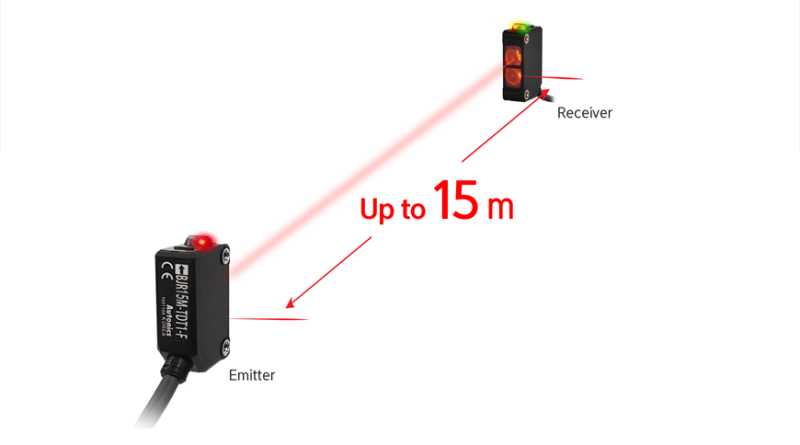

    - Through-beam type: 15 m,
    - Diffuse reflective type: 1 m
    - Retroreflective type: 3 m (MS-2S)
  • MSR (Mirror Surface Rejection) function (retroreflective type)
  • Compact size: W 20 x H 32 x L 11 mm
  • Light ON/Dark ON operation mode switch
  • Sensitivity adjuster
  • Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit
  • Mutual interference prevention function (except through-beam type)
  • Excellent noise immunity and minimal influence from ambient light
  • IP67 protection structure (IEC standard)
    Oil-proof type (BJR): IP67G oil-proof protection structure (JEM standard)
    Oil-resistant type (BJR-F): IP67F oil-resistant protection structure (JEM standard)

For more information about this article from Autonics Corporation click here.
